Area Summary
- Total Area:1950 Sq. Ft.

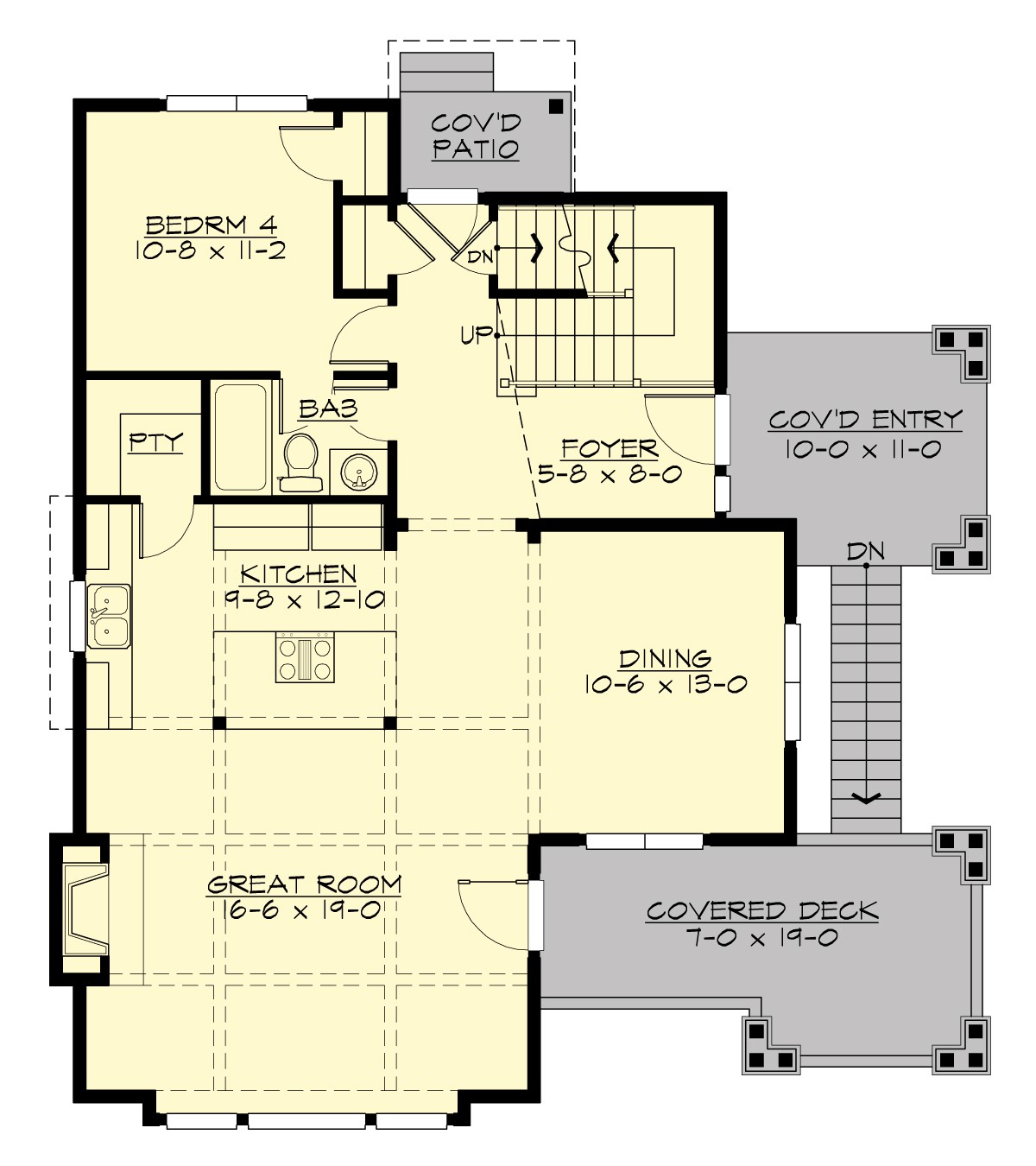

- Main Floor:1037 Sq. Ft.

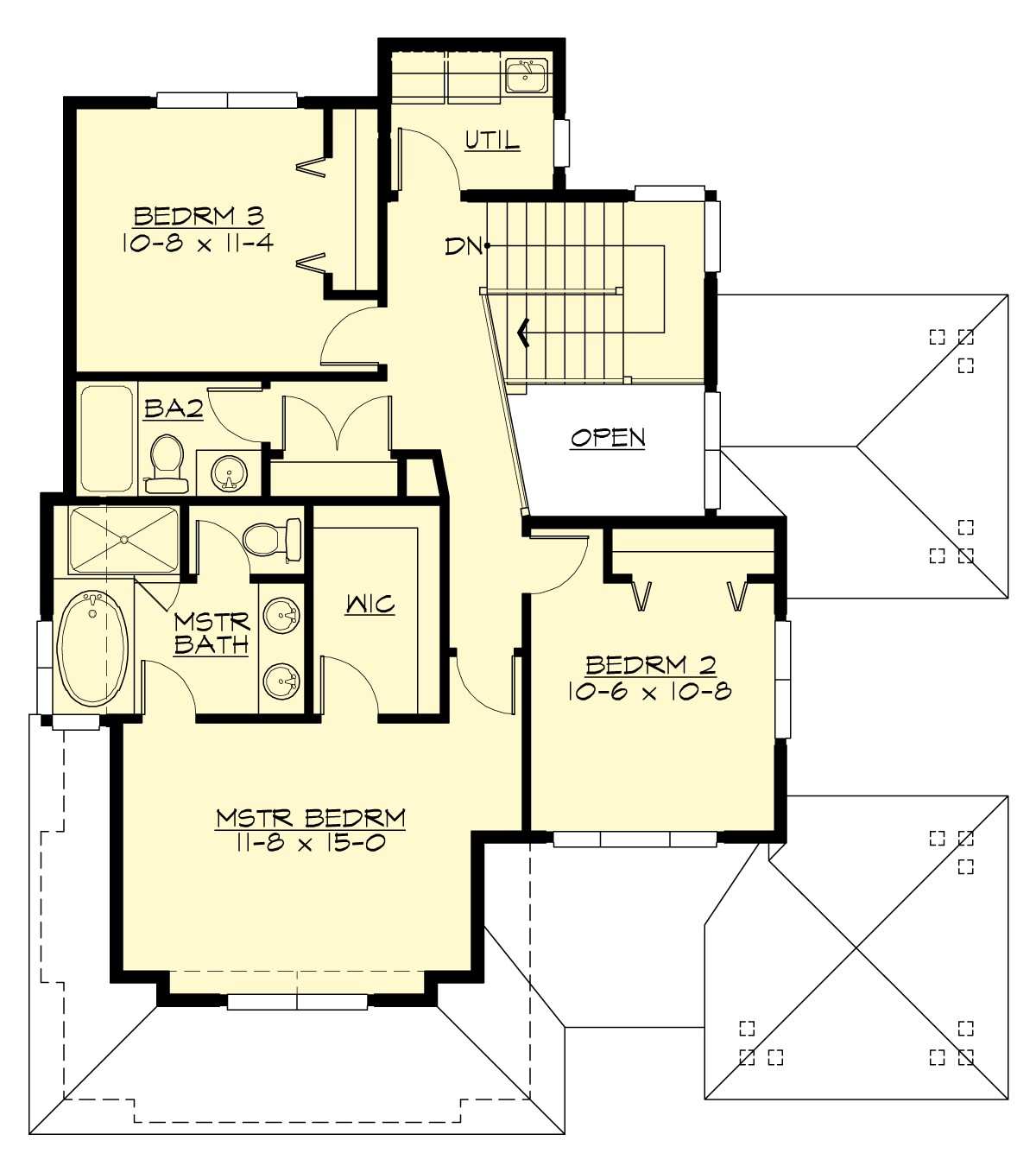

- Upper Floor:913 Sq. Ft.

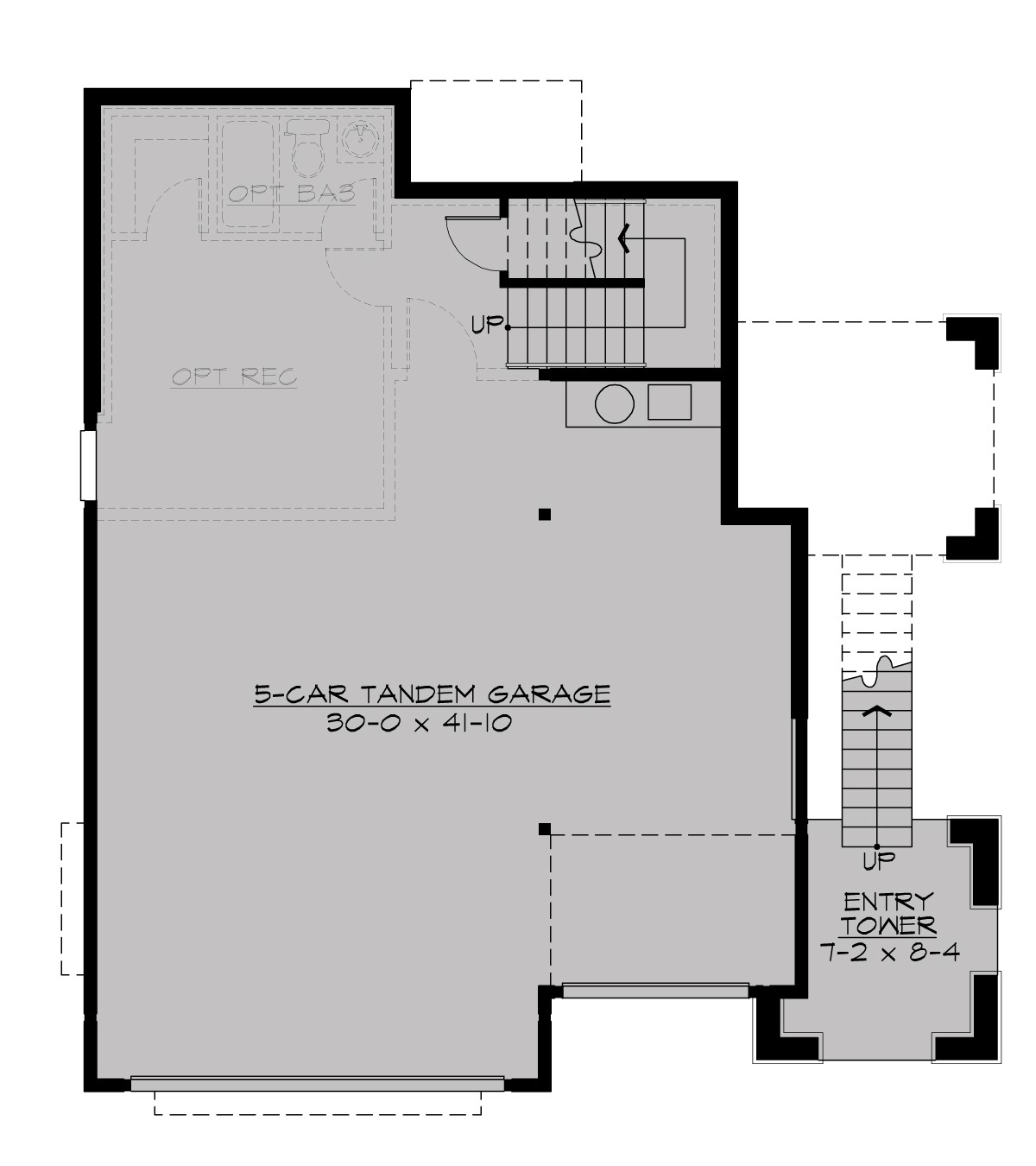

- Garage Floor:1129 Sq. Ft.
General Information
- Stories:3
- Width:39'-2"
- Depth:43'-0"
- Height:25'-6"
Architectural Style
- Hampton
- Shingle
- Traditional
Number of Rooms
- Bedrooms:4
- Full Baths:3
Garage
- Garage Size:5+
- Garage Door Location:Front
- Garage Type: Tandem, Under
Roof Pitches
- Primary:6:12
Wall Heights
- Main:9'-0"
- Upper:9'-0"
- Lower:8'-0"
Foundation Type
- Slab On Grade
Roof Framing
- Trusses
Floor Load
- Live (lbs):40 PSF
- Dead (lbs):10 PSF
Roof Load
- Live (lbs):25 PSF
- Dead (lbs):15 PSF
- Wind:85 MPH
Design Features
- Front Porch
- Great Room
- Laundry Room @ & Upper Floor
- Master Bedroom @ Upper Floor
- Hampton House Plans
- Shingle House Plans
- Traditional House Plans
