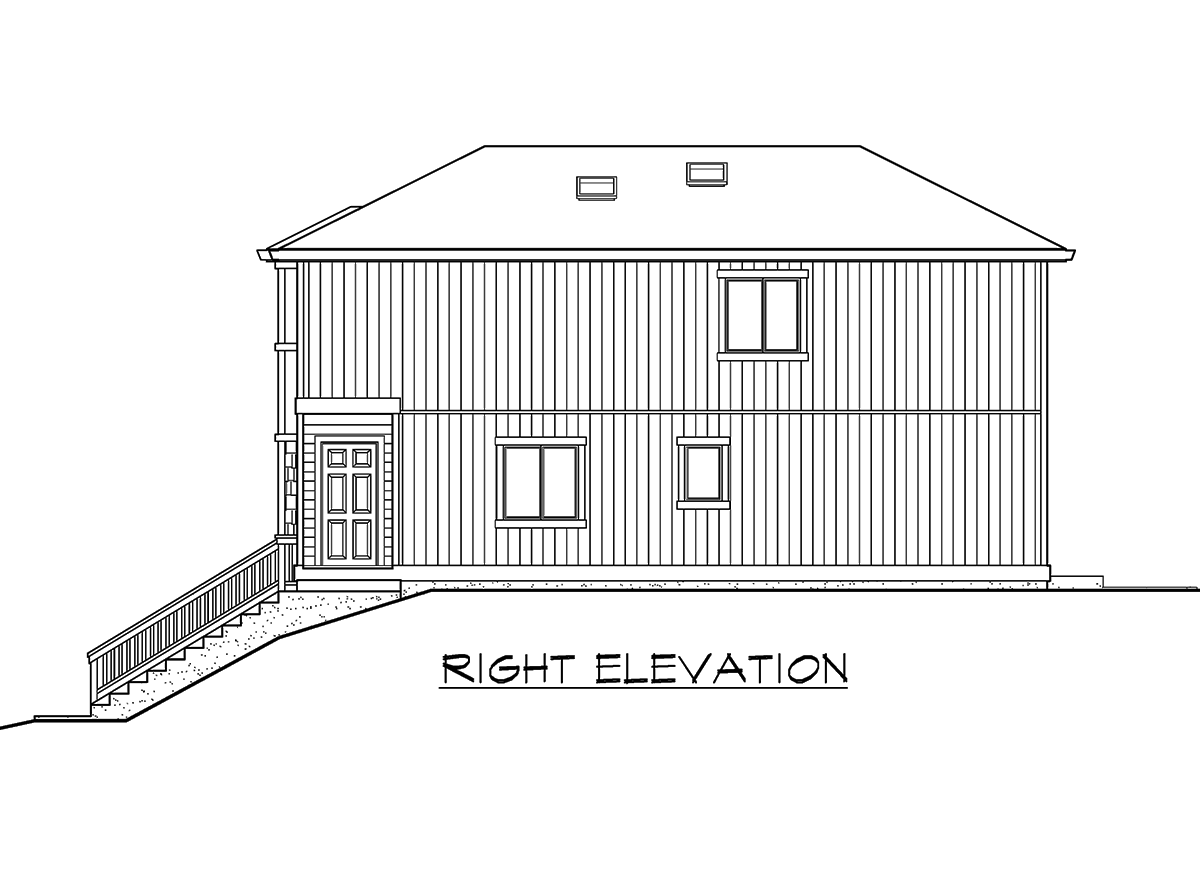

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

MORGAN

M1488B2FU-0
  • Total Area:1488 Sq. Ft.
  • Garage Area:515 Sq Ft
  • Garage Size:2
  • Stories:3
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
  • Width:20'-0"
  • Depth:40'-0"
  • Height:22'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
M1488B2FU-0 Morgan Main Floor
Main Floor
M1488B2FU-0 Morgan Upper Floor
Upper Floor
M1488B2FU-0 Morgan Lower Floor
Lower Floor
PLAN DETAILS FOR THE MORGAN - PLAN M1488B2FU-0
Area Summary
  • Total Area:1488 Sq. Ft.
  • Main Floor:757 Sq. Ft.
  • Upper Floor:731 Sq. Ft.
  • Garage Floor:515 Sq. Ft.
General Information
  • Stories:3
  • Width:20'-0"
  • Depth:40'-0"
  • Height:22'-6"
Architectural Style
  • Craftsman
  • Northwest
  • Shotgun
Number of Rooms
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
  • Garage Type: Under
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:8'-0"
  • Upper:8'-0"
  • Lower:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Front
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shotgun Floor Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
