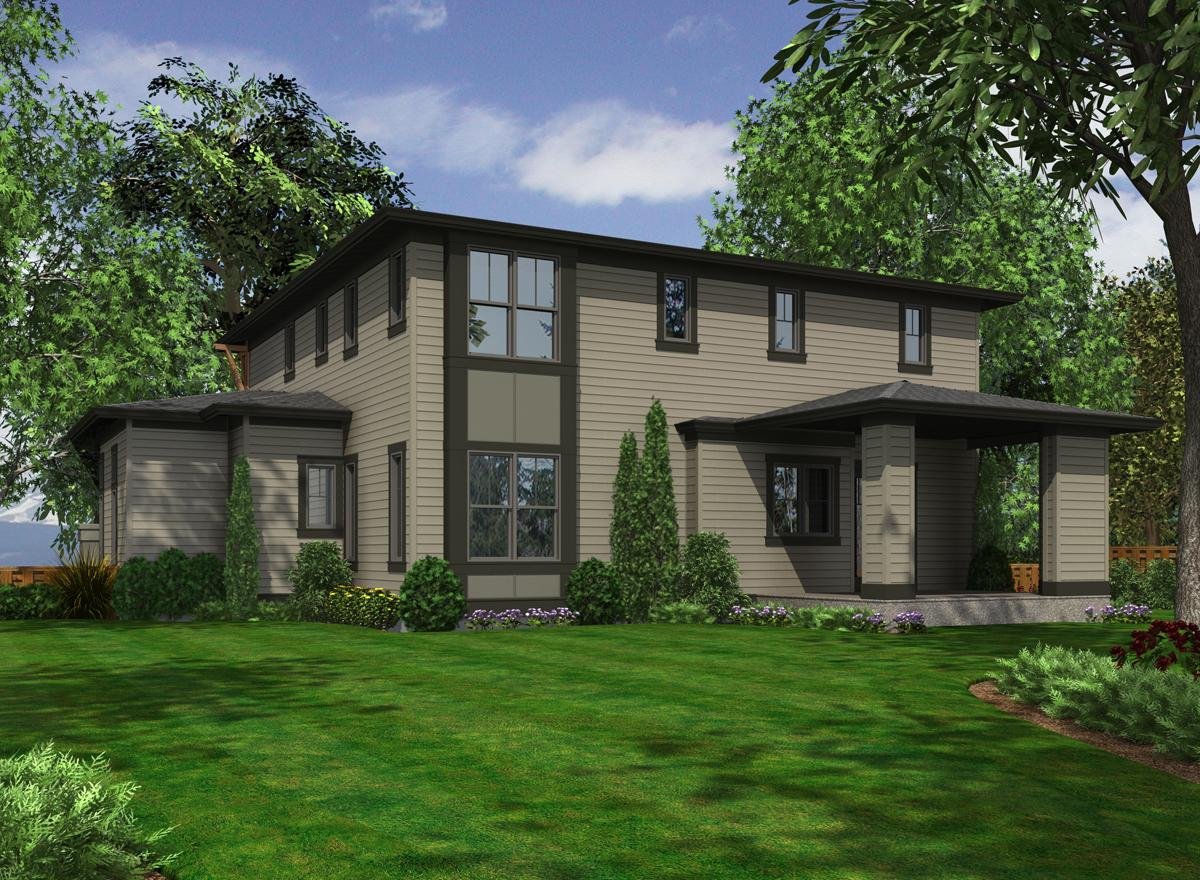

Rear Rendering

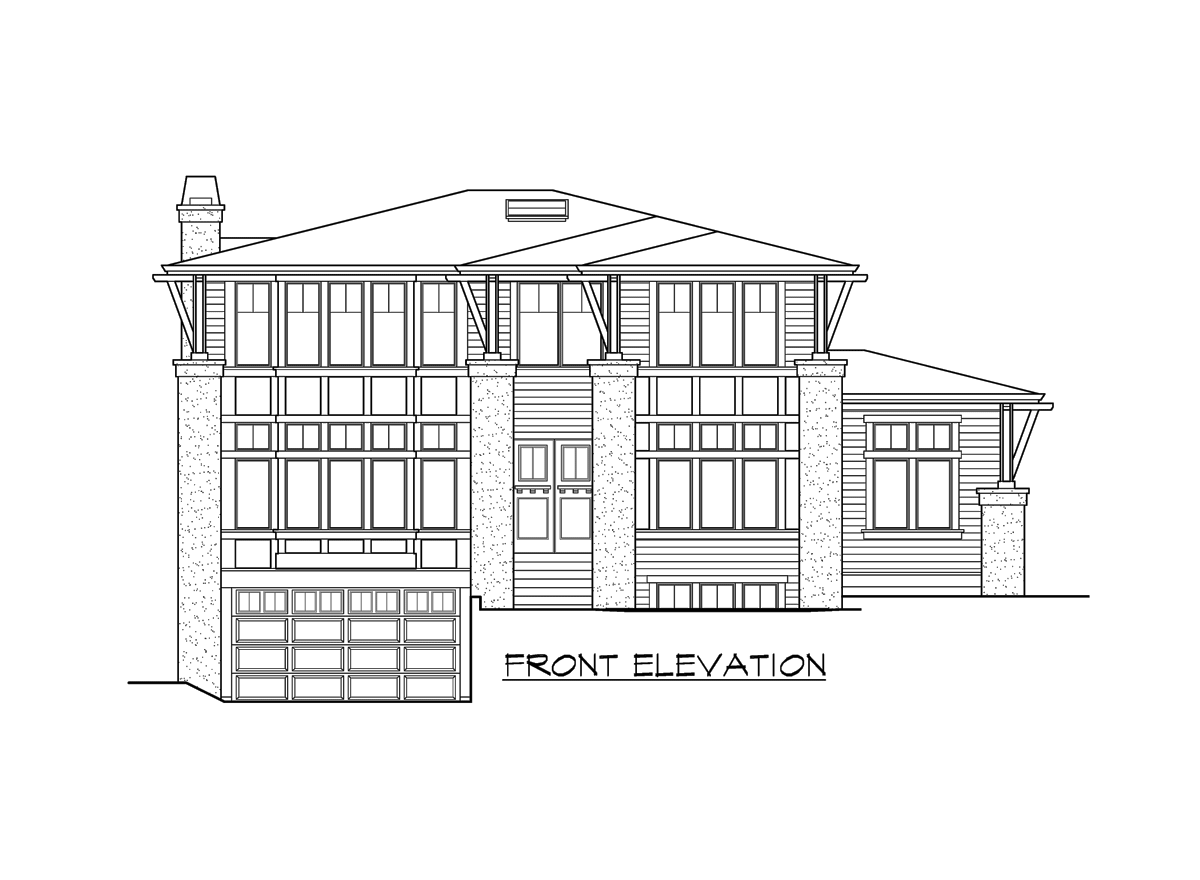

Front Elevation

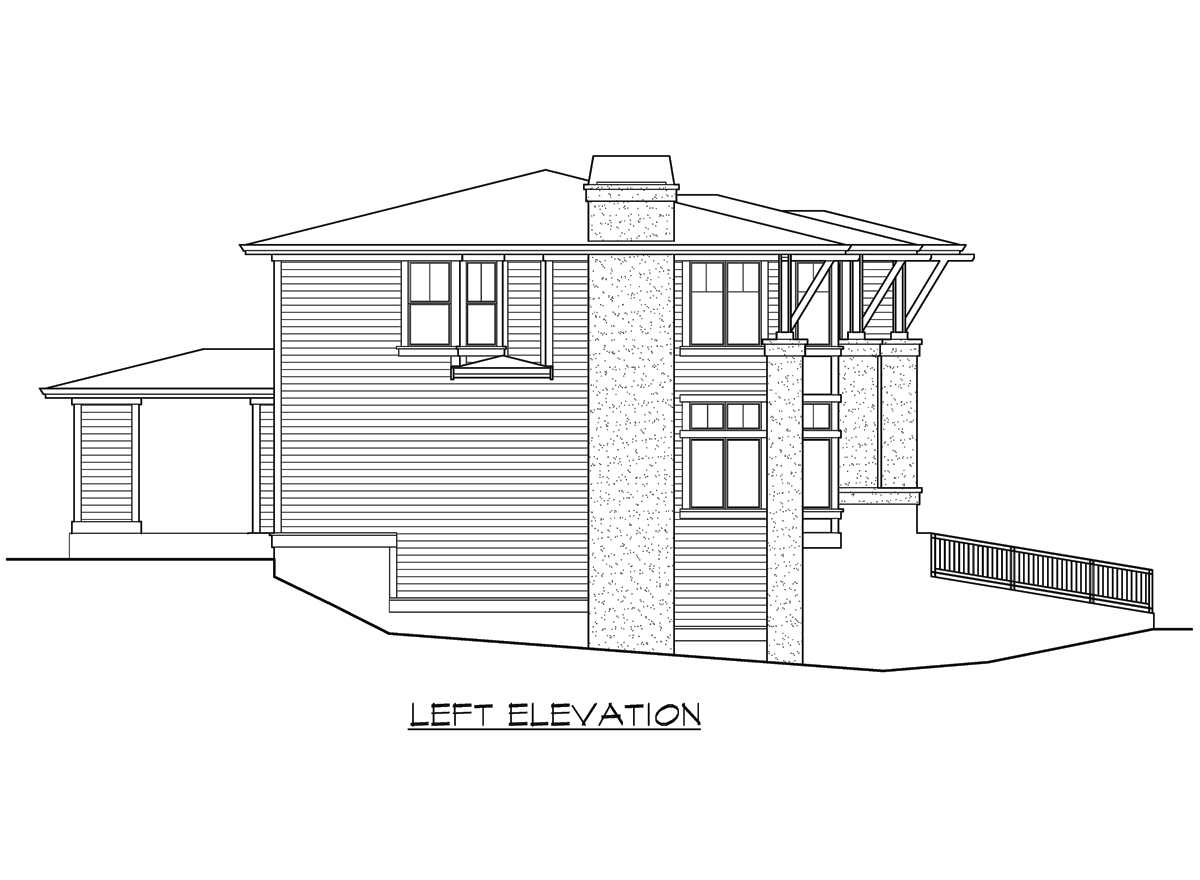

Left Elevation

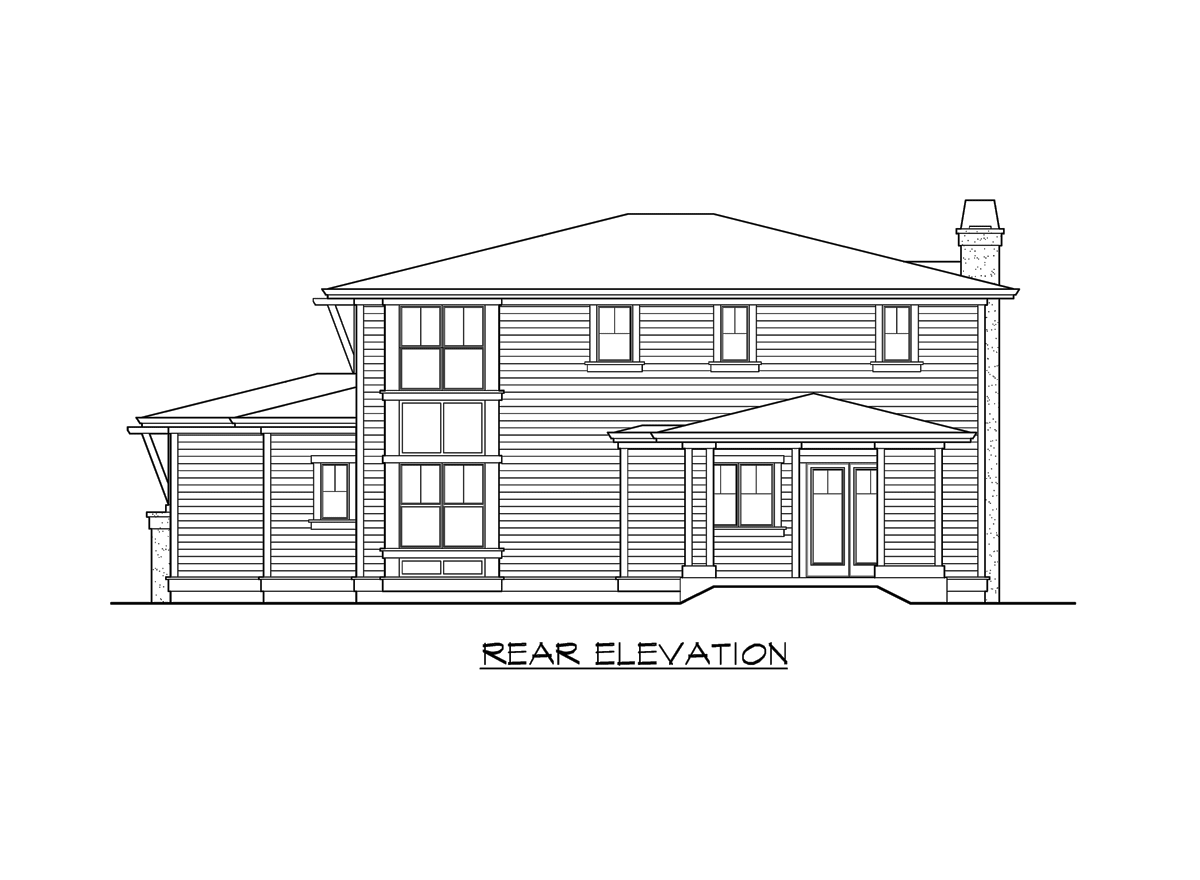

Rear Elevation

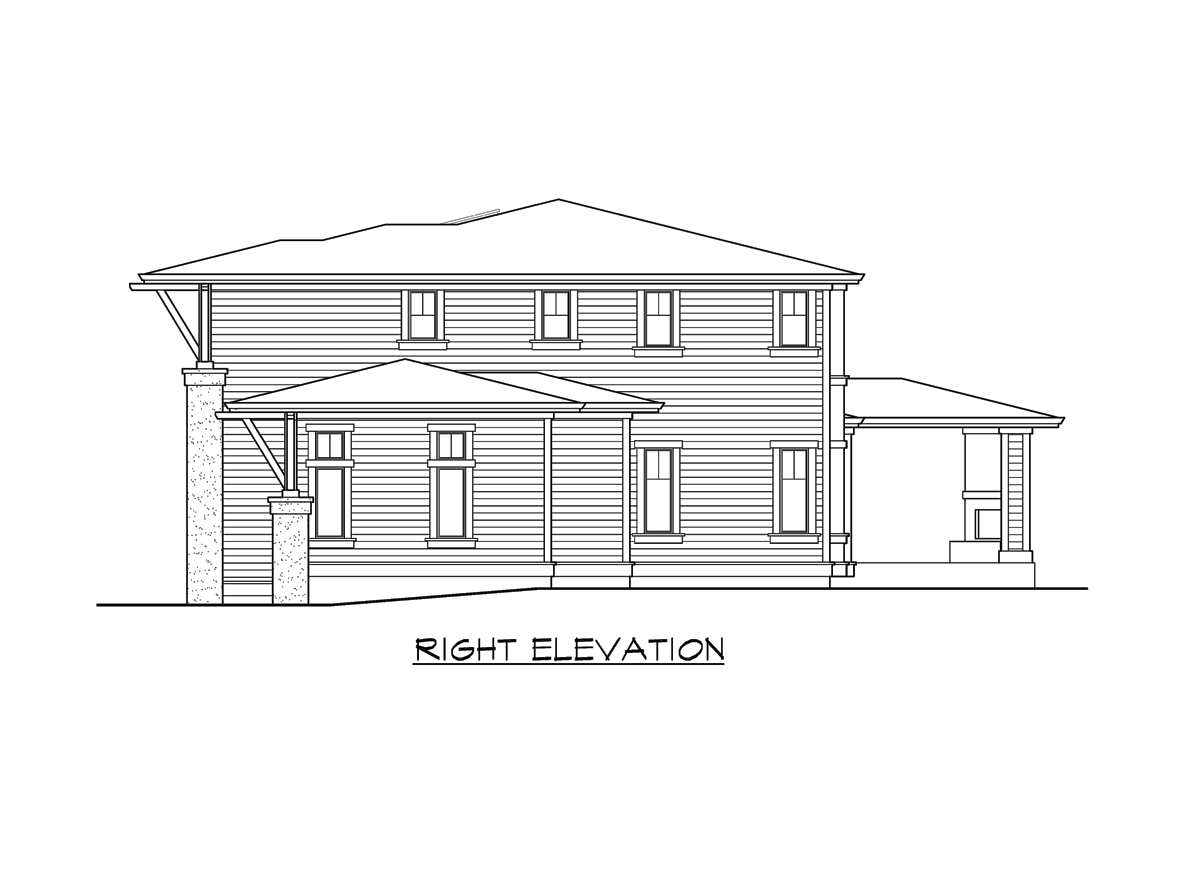

Right Elevation
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

FERNRIDGE

M4146A4FTU-0DB
  • Total Area:4146 Sq. Ft.
  • Garage Area:795 Sq Ft
  • Garage Size:4
  • Stories:3
  • Bedrooms:4
  • Full Baths:5
  • Width:59'-6"
  • Depth:75'-6"
  • Height:25'-6"
  • Foundation:Basement
PLAN DETAILS FOR THE FERNRIDGE - PLAN M4146A4FTU-0DB
Area Summary
  • Total Area:4146 Sq. Ft.

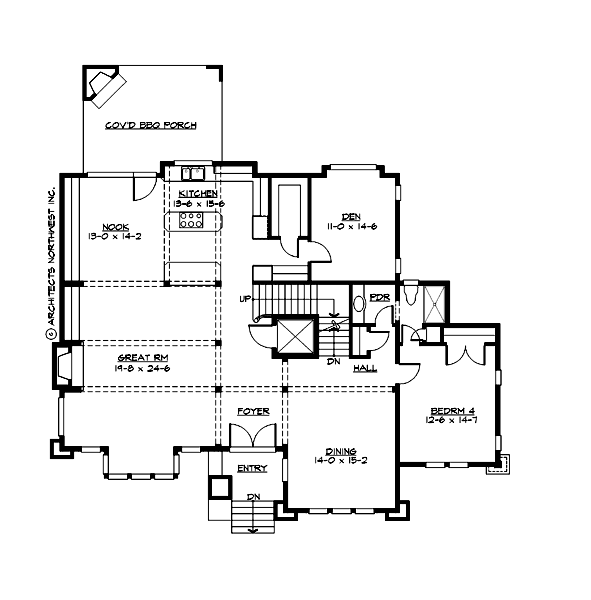

  • Main Floor:1960 Sq. Ft.

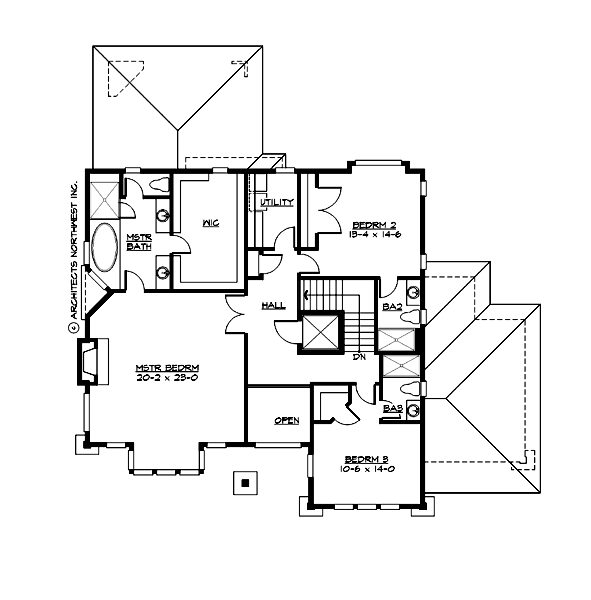

  • Upper Floor:1589 Sq. Ft.
  • Lower Floor:597 Sq. Ft.
  • Garage Floor:795 Sq. Ft.
General Information
  • Stories:3
  • Width:59'-6"
  • Depth:75'-6"
  • Height:25'-6"
Architectural Style
  • Contemporary
  • Modern
  • Prarie
Number of Rooms
  • Bedrooms:4
  • Full Baths:5
Garage
  • Garage Size:4
  • Garage Door Location:Front
  • Garage Type: Under
Roof Pitches
  • Primary:3:12
Wall Heights
  • Main:10'-0"
  • Upper:9'-0"
  • Lower:9'-0"
Foundation Type
  • Daylight Basement
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Lower Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Front
  • Contemporary Home Plans
  • Modern Home Plans
  • Prairie Home Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
