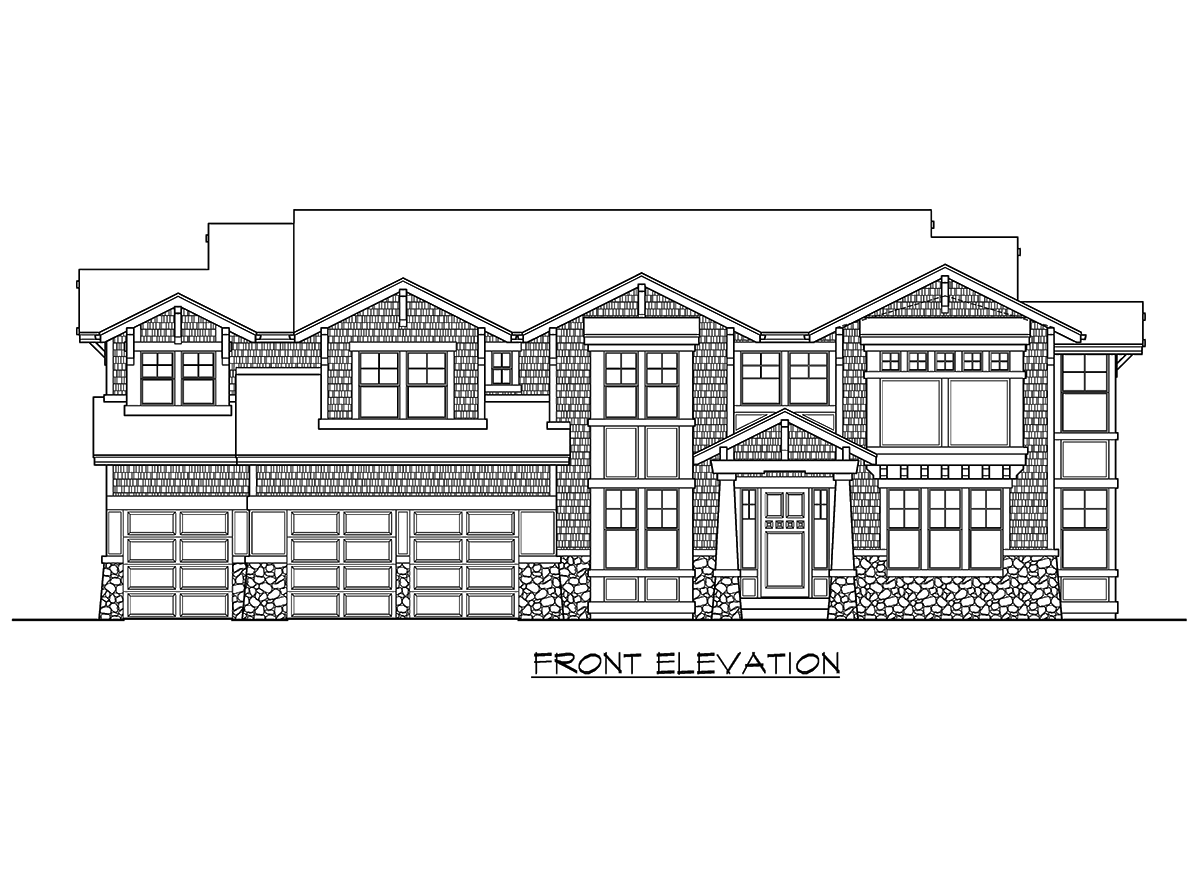

Front Elevation

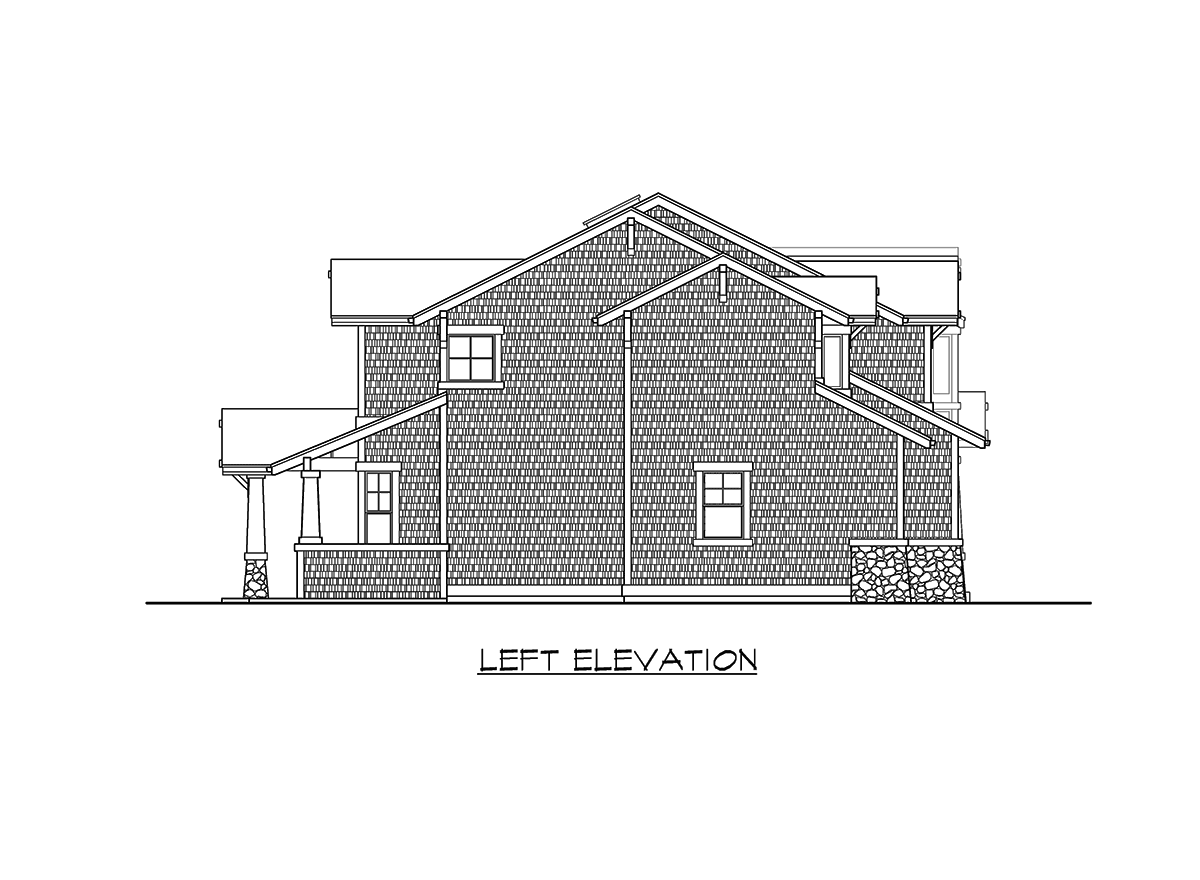

Left Elevation

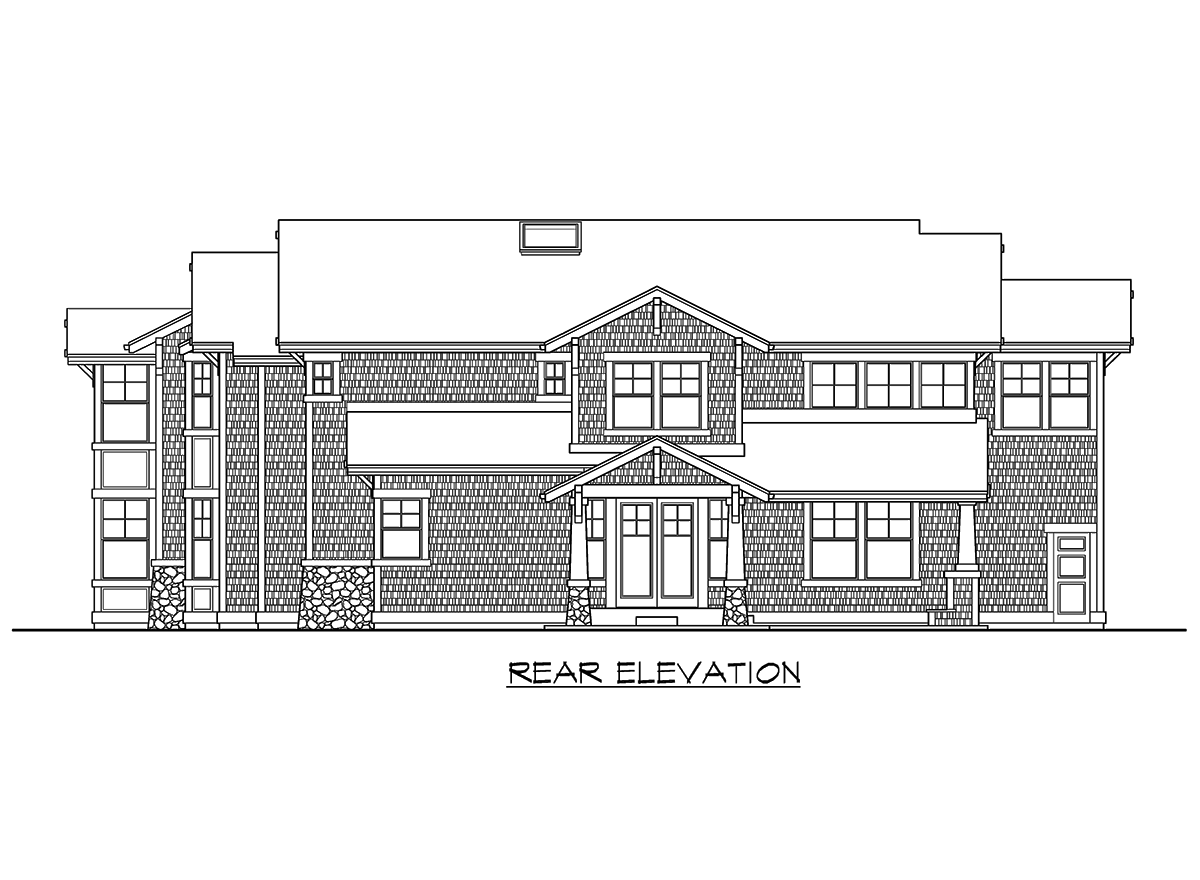

Rear Elevation

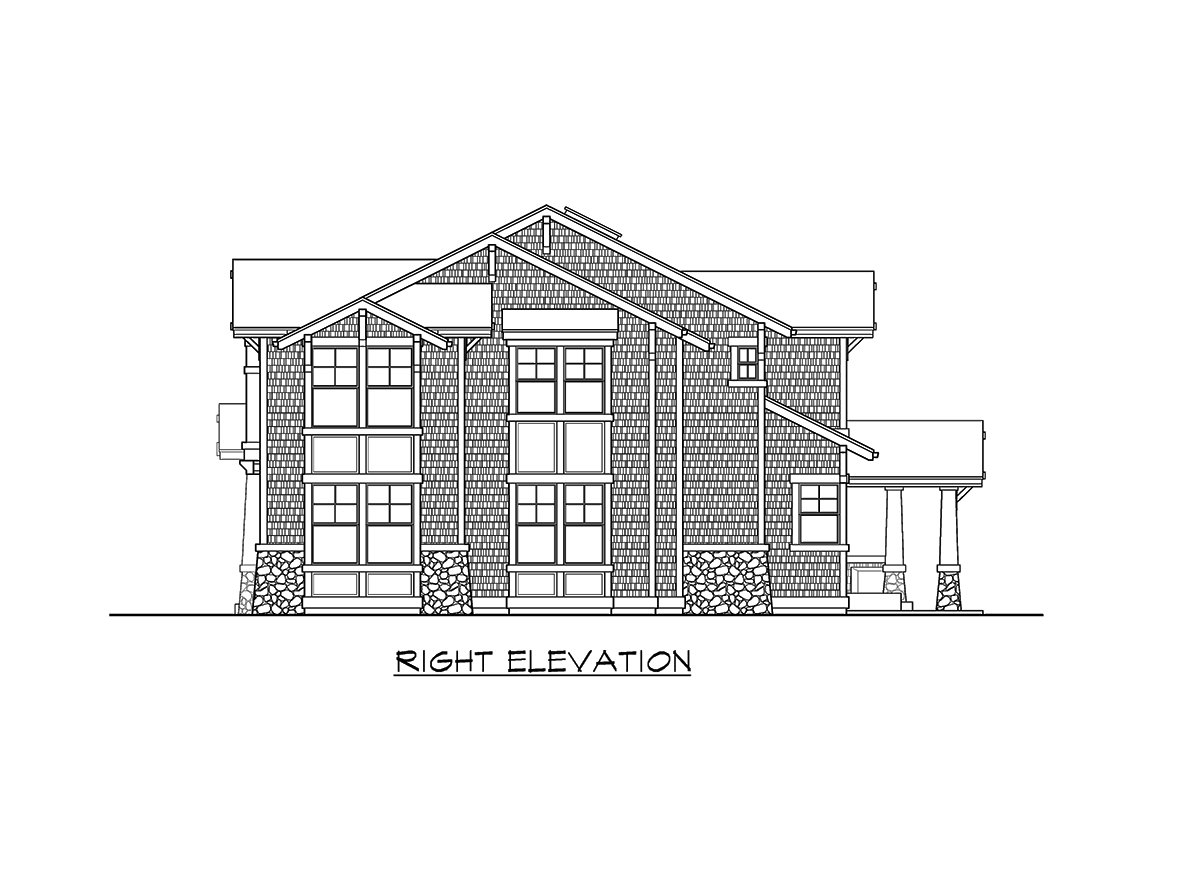

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

ROOSEVELT

M3683A3F-0
  • Total Area:3683 Sq. Ft.
  • Garage Area:686 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
  • Width:74'-0"
  • Depth:51'-0"
  • Height:28'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

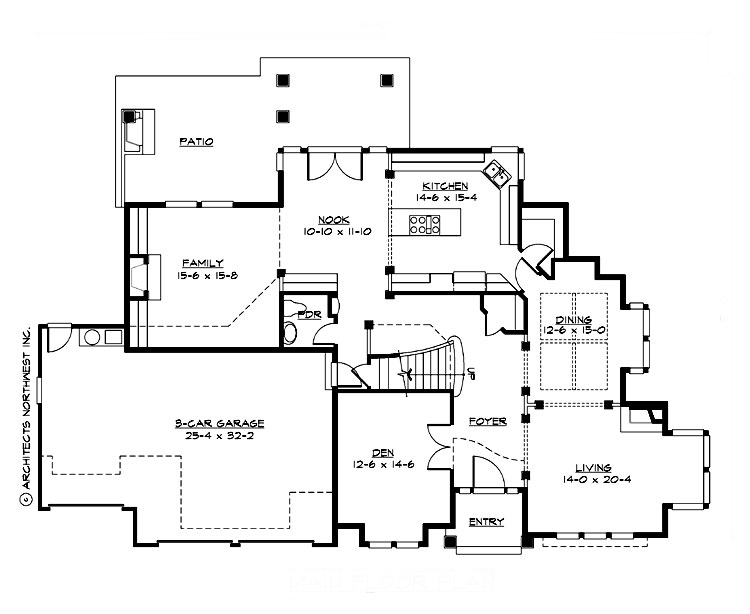

M3683A3F-0 Roosevelt Main Floor
Main Floor

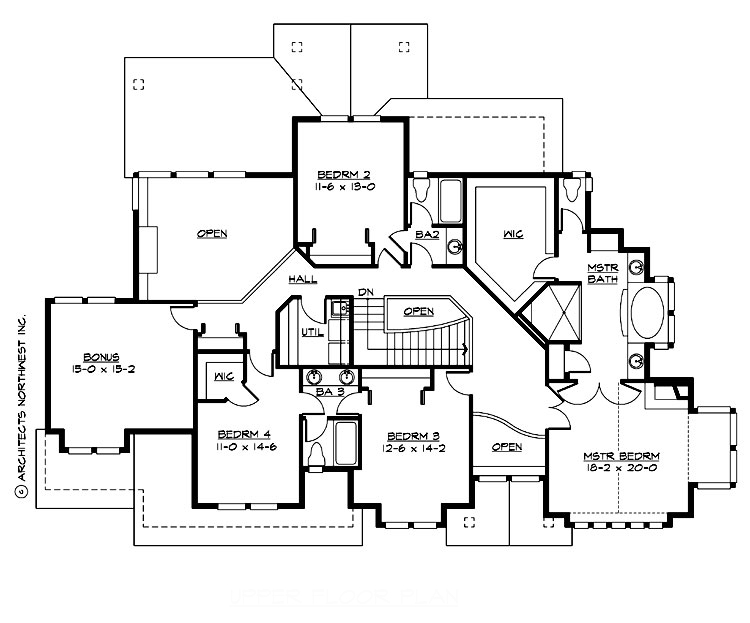

M3683A3F-0 Roosevelt Upper Floor
Upper Floor
PLAN DETAILS FOR THE ROOSEVELT - PLAN M3683A3F-0
Area Summary
  • Total Area:3683 Sq. Ft.
  • Main Floor:1785 Sq. Ft.
  • Upper Floor:1898 Sq. Ft.
  • Garage Floor:686 Sq. Ft.
General Information
  • Stories:2
  • Width:74'-0"
  • Depth:51'-0"
  • Height:28'-6"
Architectural Style
  • Hampton
  • Shingle
  • Traditional
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Front
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:10'-0"
  • Upper:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Front
  • Hampton House Plans
  • Shingle House Plans
  • Traditional House Plans
  • Wide Lot House Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
