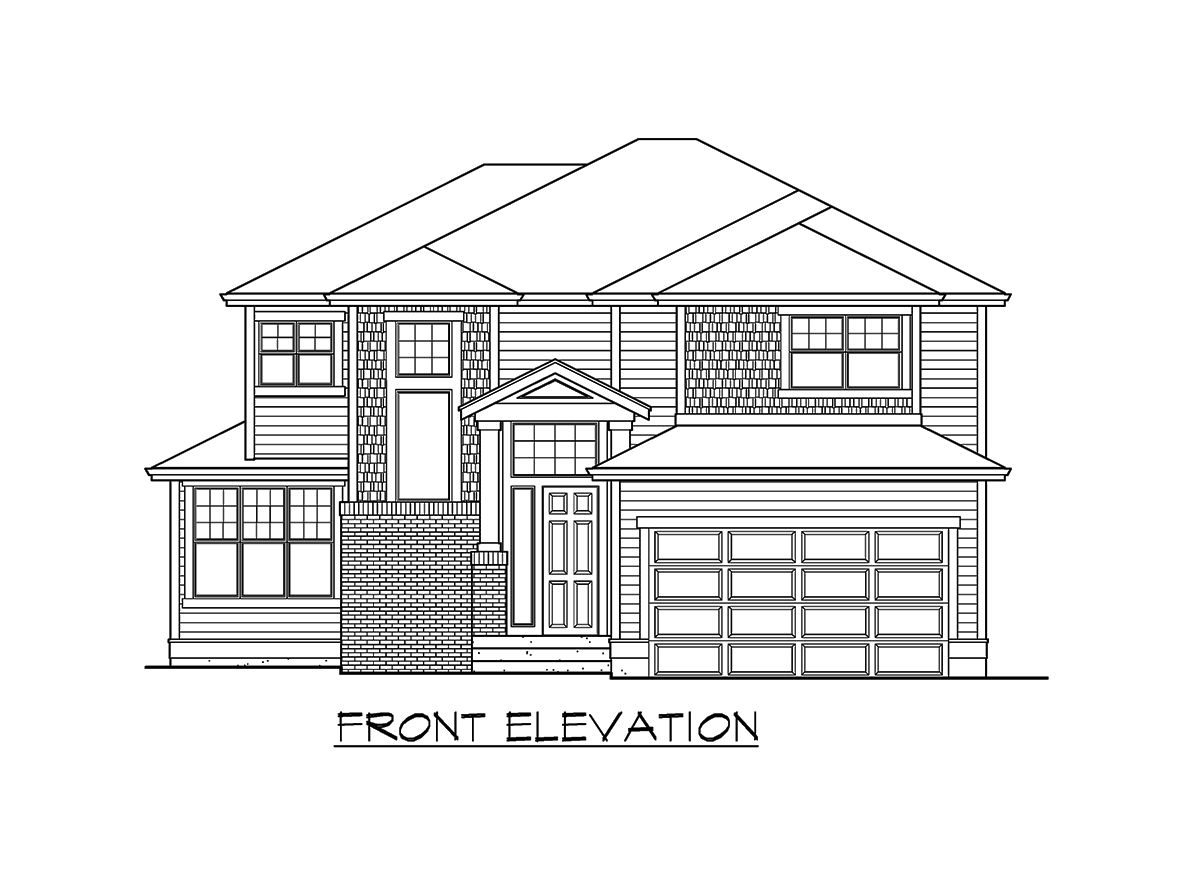

Front Elevation

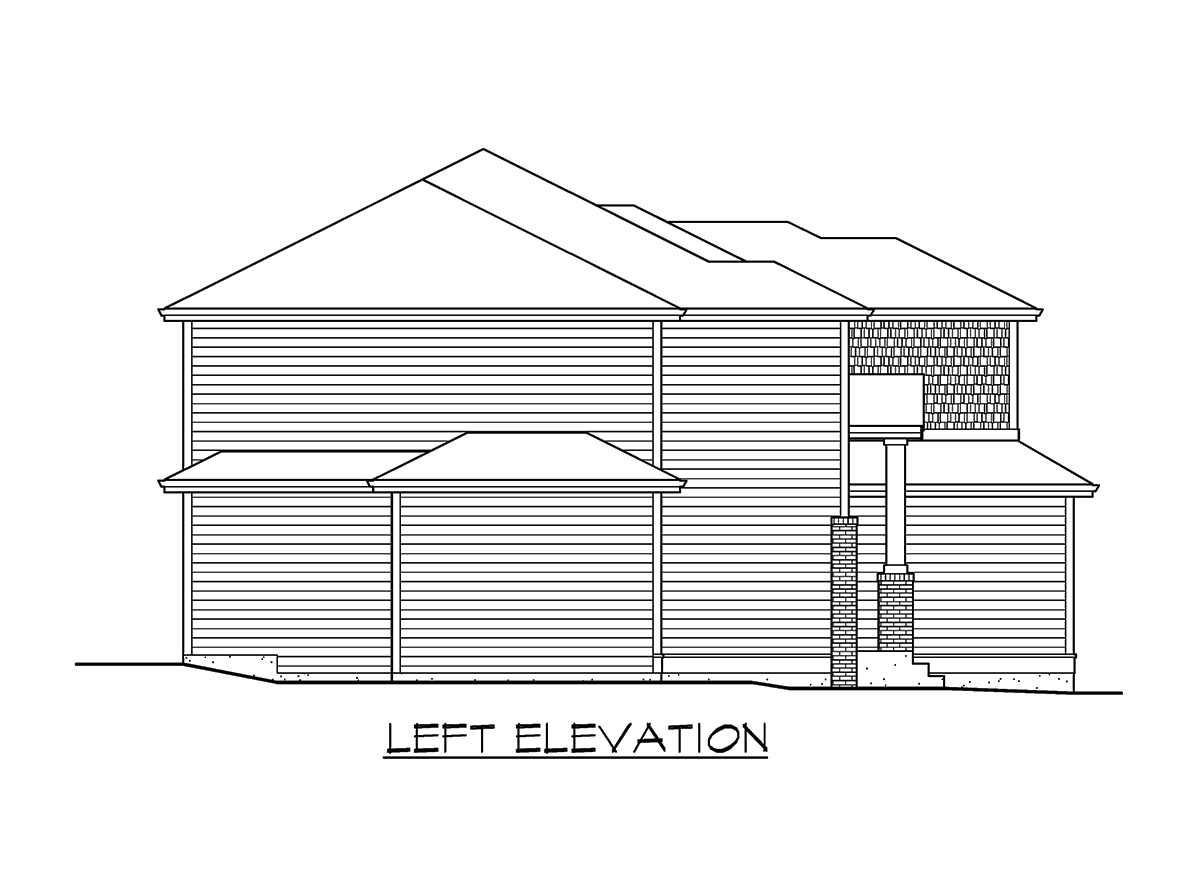

Left Elevation

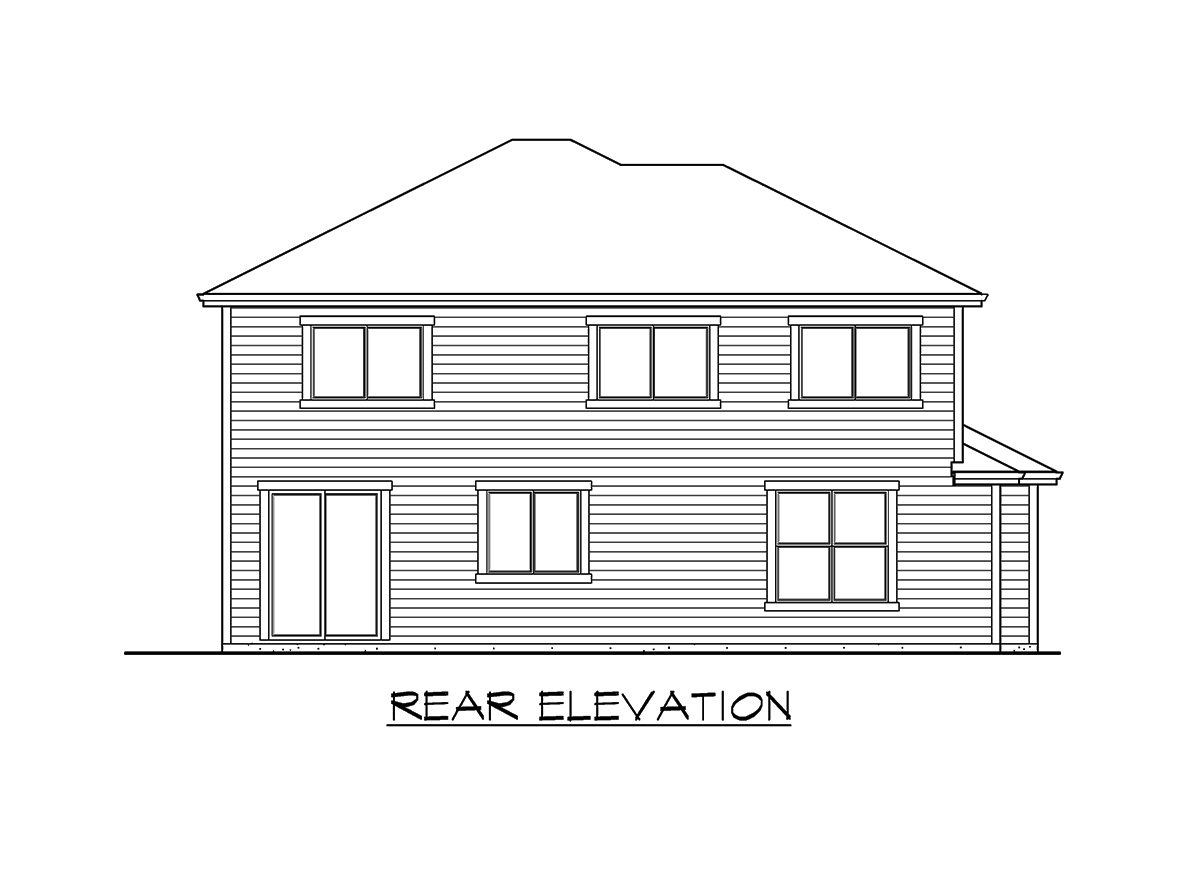

Rear Elevation

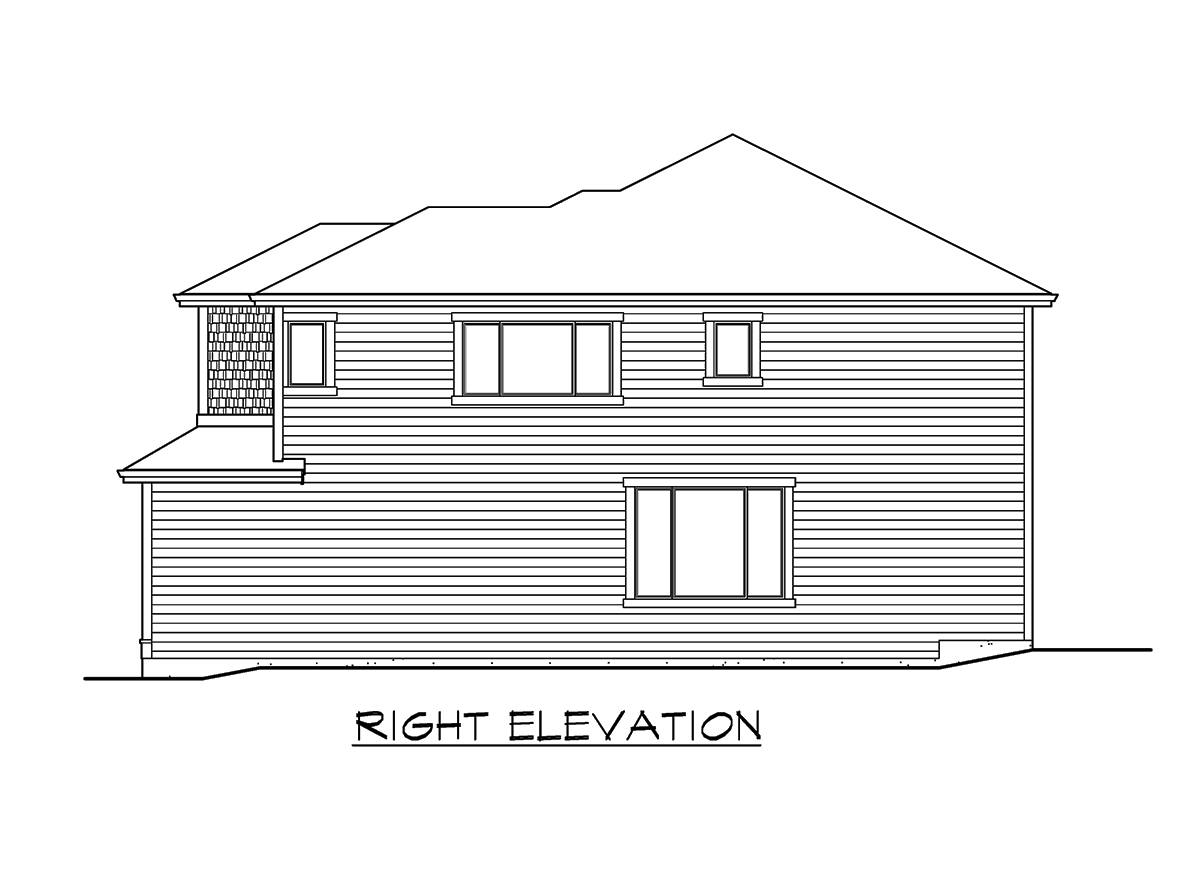

Right Elevation
Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

BARCLAY

M2402B2F-0
  • Total Area:2402 Sq. Ft.
  • Garage Area:437 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
  • Width:40'-0"
  • Depth:48'-0"
  • Height:26'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

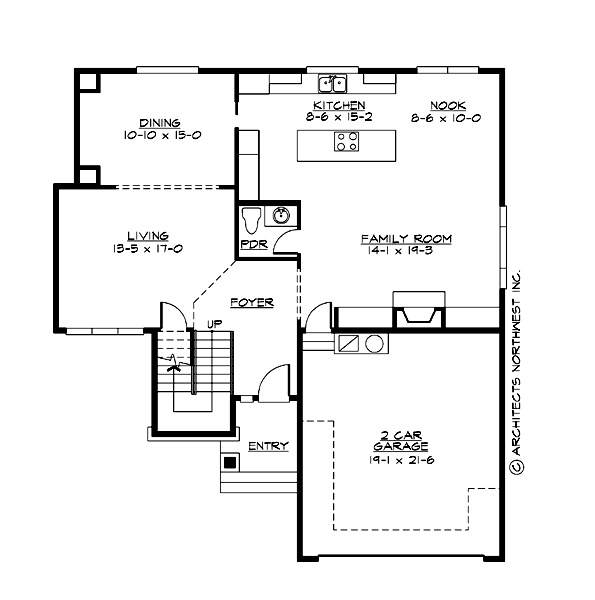

M2402B2F-0 Barclay Main Floor
Main Floor

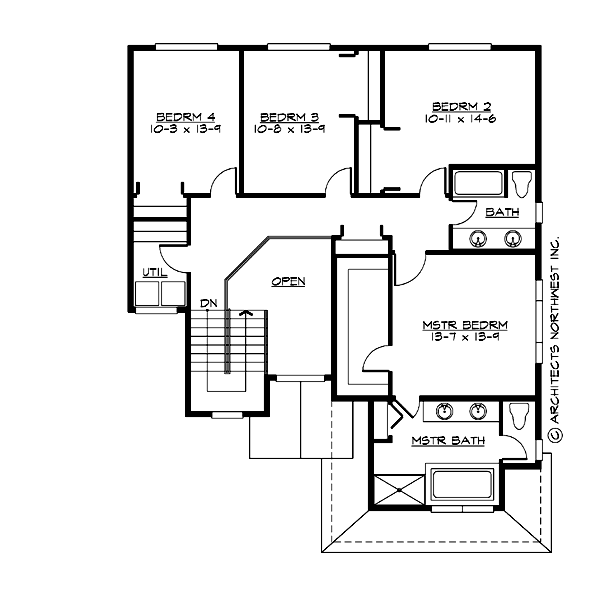

M2402B2F-0 Barclay Upper Floor
Upper Floor
PLAN DETAILS FOR THE BARCLAY - PLAN M2402B2F-0
Area Summary
  • Total Area:2402 Sq. Ft.
  • Main Floor:1129 Sq. Ft.
  • Upper Floor:1273 Sq. Ft.
  • Garage Floor:437 Sq. Ft.
General Information
  • Stories:2
  • Width:40'-0"
  • Depth:48'-0"
  • Height:26'-6"
Architectural Style
  • Craftsman
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Front
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • Small House Plans
