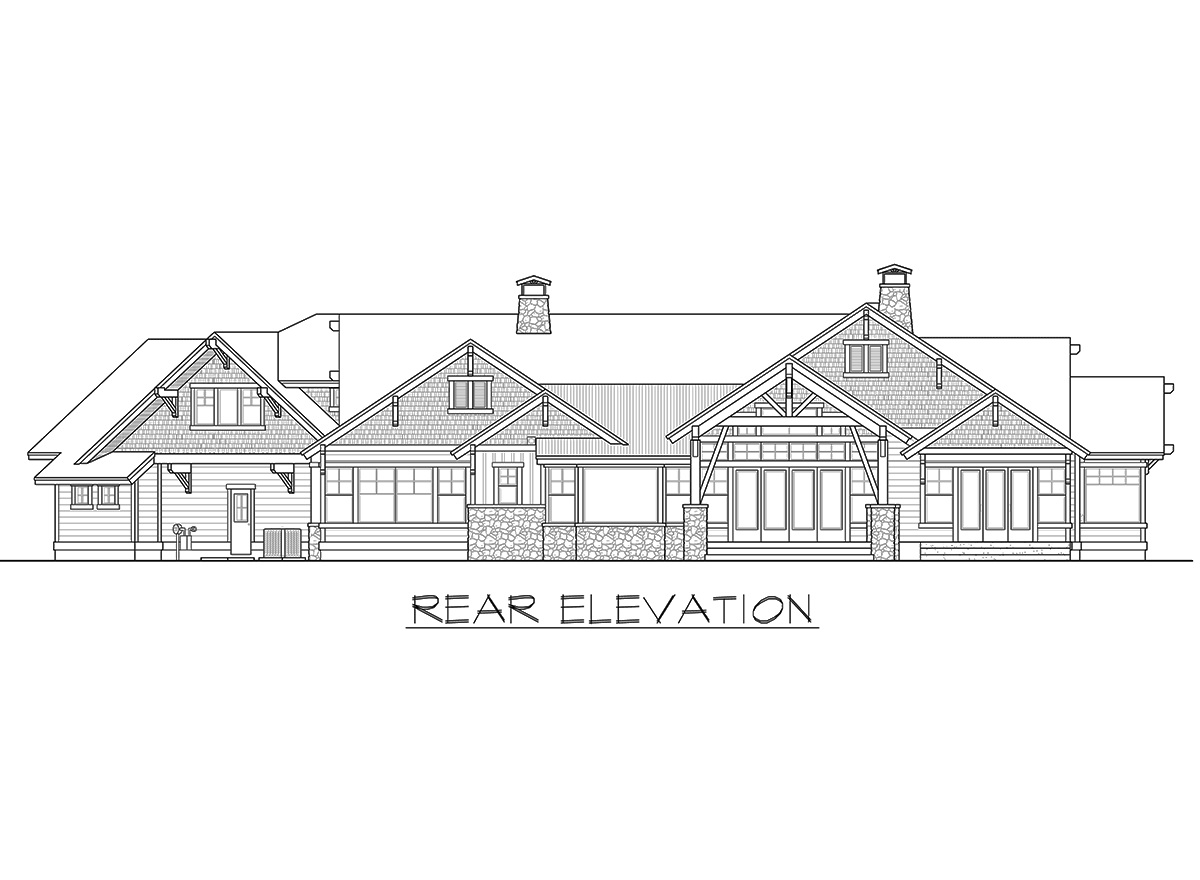

Rear Elevation

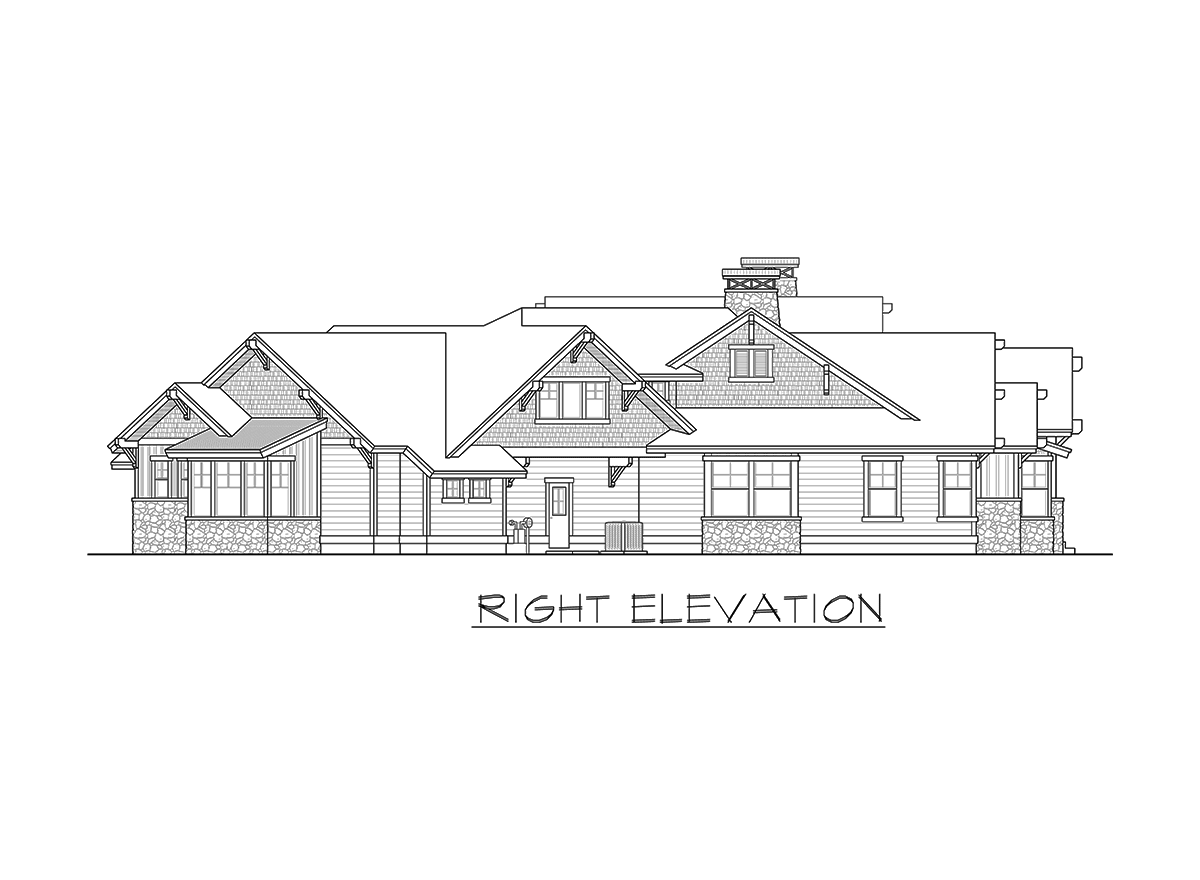

Right Elevation
Front Rendering
Front Rendering
Left Rendering
Rear Rendering
Rear/Right Rendering
Right/Rear Rendering
Right Rendering
Front Rendering - Air
Left Rendering - Air
Rear Rendering - Air
Rear/Right Rendering - Air
Right Rendering - Air
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

BLACK DIAMOND LODGE

R4530A3FA-0
  • Total Area:4530 Sq. Ft.
  • Garage Area:1399 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:4
  • Half Baths:1
  • Width:116'-0"
  • Depth:99'-0"
  • Height:25'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

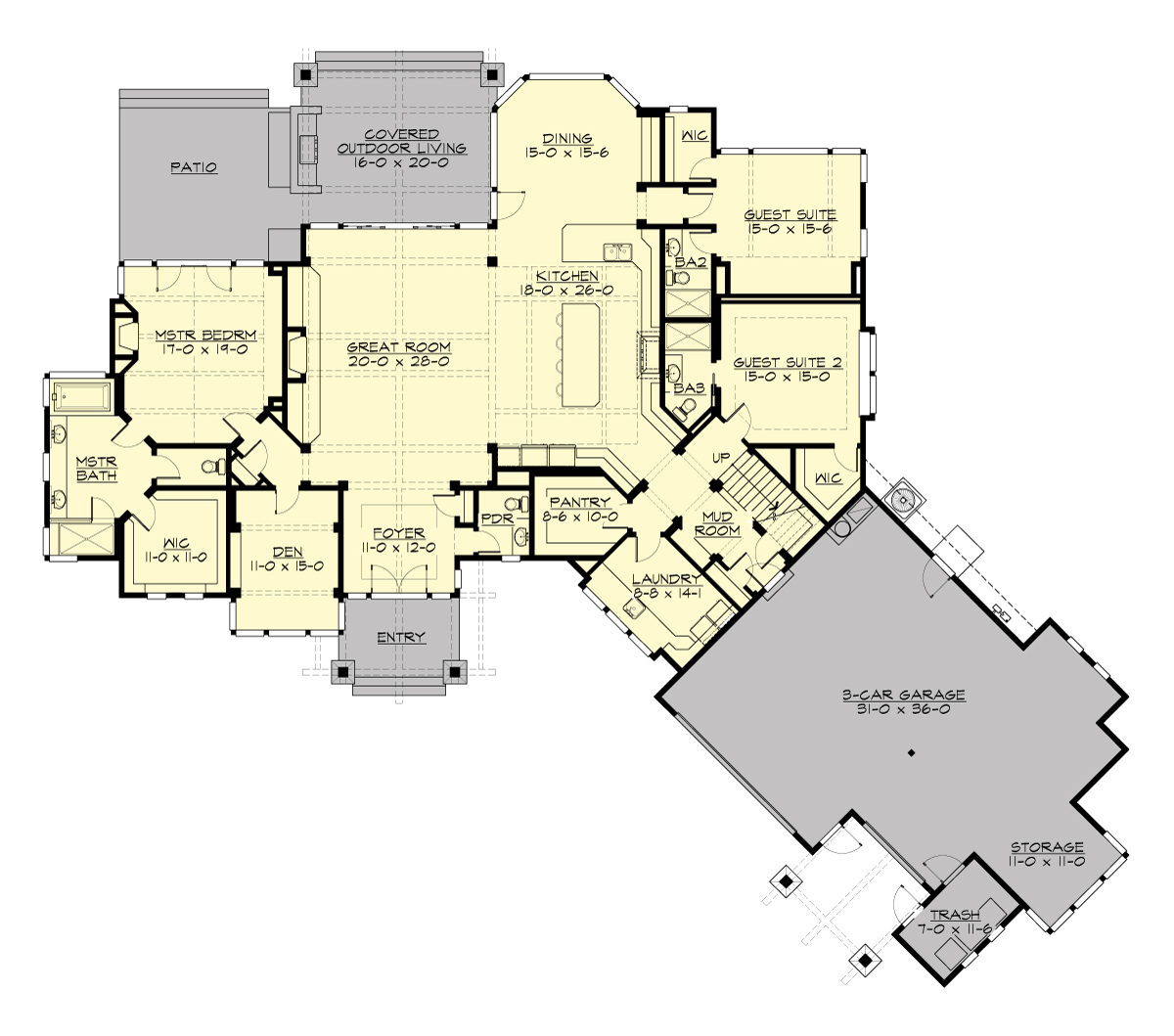

R4530A3FA-0 Black Diamond Lodge Main Floor
Main Floor
R4530A3FA-0 Black Diamond Lodge Upper Floor
Upper Floor
PLAN DETAILS FOR THE BLACK DIAMOND LODGE - PLAN R4530A3FA-0
Area Summary
  • Total Area:4530 Sq. Ft.
  • Main Floor:3702 Sq. Ft.
  • Upper Floor:828 Sq. Ft.
  • Garage Floor:1399 Sq. Ft.
General Information
  • Stories:2
  • Width:116'-0"
  • Depth:99'-0"
  • Height:25'-6"
Architectural Style
  • Craftsman
  • Lodge
  • Mountain
Number of Rooms
  • Bedrooms:4
  • Full Baths:4
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Front
  • Garage Type: Angled
Roof Pitches
  • Primary:8:12
  • Secondary:4:12
Wall Heights
  • Main:10'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Combination
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Suncadia Collection
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • Craftsman House Plans
  • Lodge House Plans
  • Mountain House Plans
  • View Lot (Rear) Plans
  • Wide Lot House Plans
