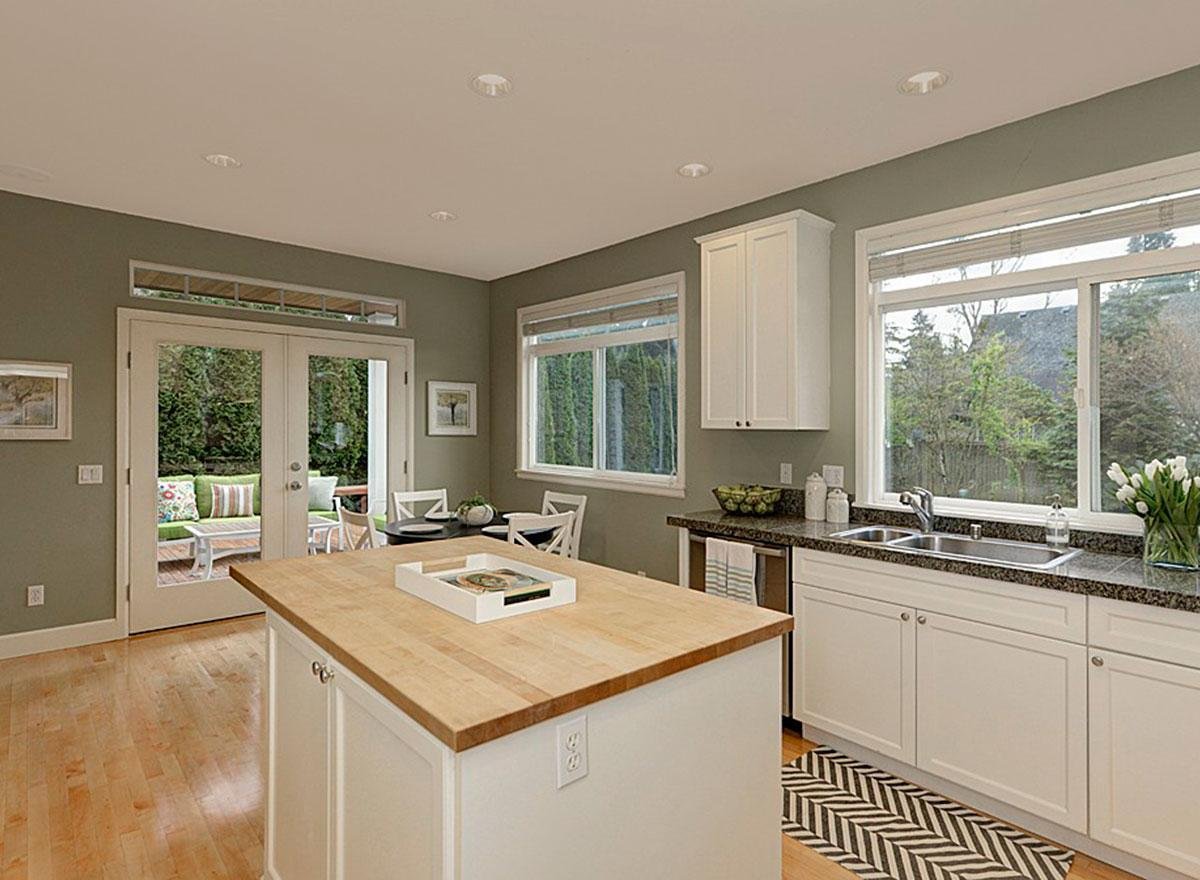

Kitchen
Nook - Kitchen
Nook
Family
Loft

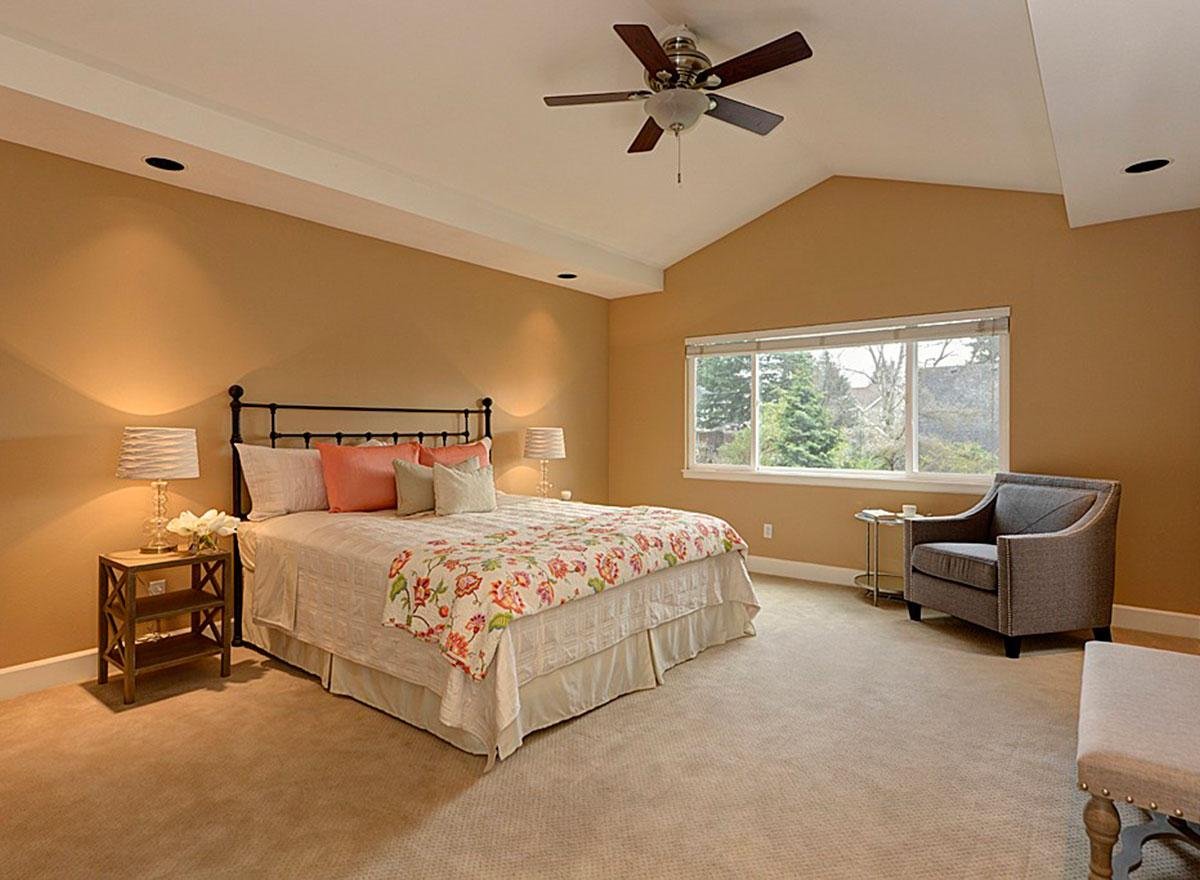

Master Bedroom
Master Bath
Master Bath
WIC
Bedroom 3
Bonus
Bath 2
Front Rendering
Rear Rendering
Front Elevation
Left Elevation
Rear Elevation

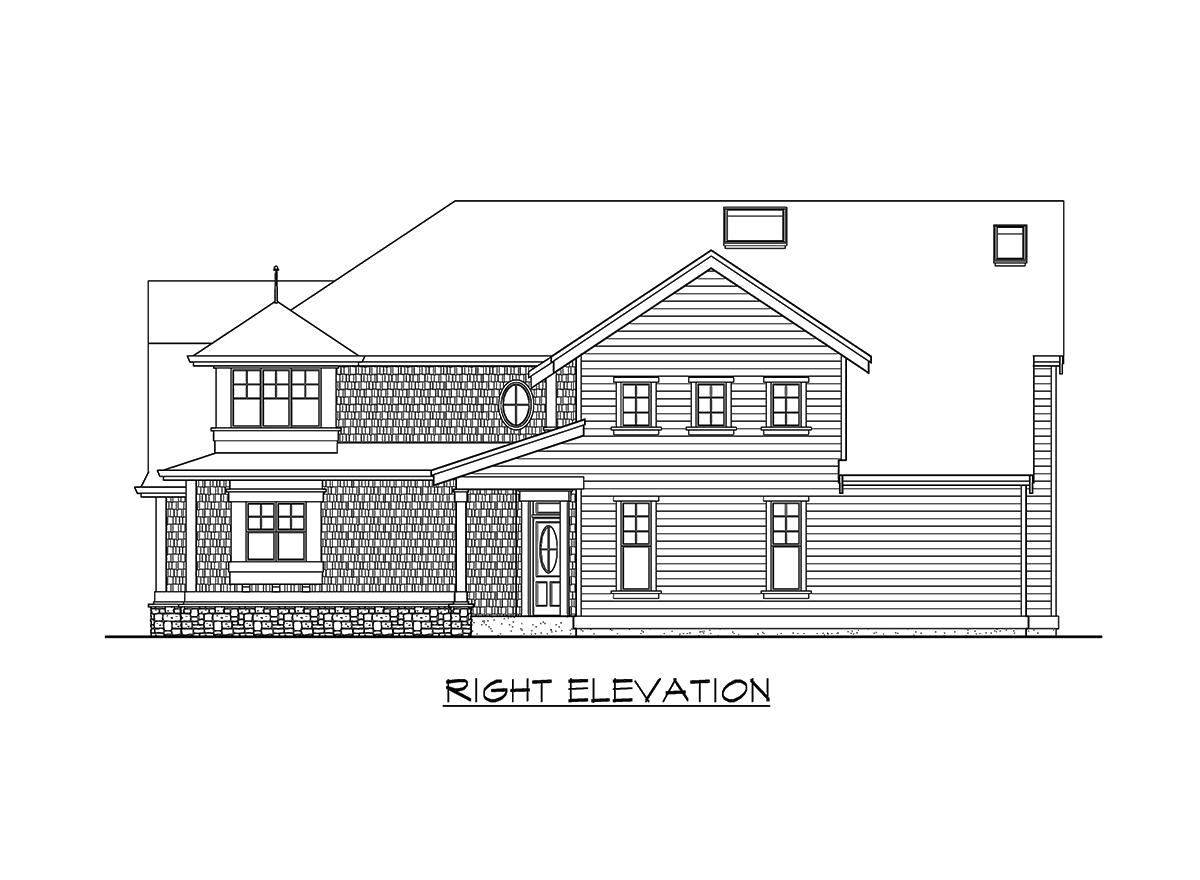

Right Elevation

Plan Pricing

$0

SYCAMORE

M2780A3F-0
  • Total Area:2780 Sq. Ft.
  • Garage Area:685 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
  • Width:40'-0"
  • Depth:60'-0"
  • Height:28'-0"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan
M2780A3F-0 Sycamore Main Floor
Main Floor
M2780A3F-0 Sycamore Upper Floor
Upper Floor
PLAN DETAILS FOR THE SYCAMORE - PLAN M2780A3F-0
Area Summary
  • Total Area:2780 Sq. Ft.
  • Main Floor:1330 Sq. Ft.
  • Upper Floor:1450 Sq. Ft.
  • Garage Floor:685 Sq. Ft.
General Information
  • Stories:2
  • Width:40'-0"
  • Depth:60'-0"
  • Height:28'-0"
Architectural Style
  • Cape Cod
  • Hampton
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Front
Roof Pitches
  • Primary:8:12
  • Secondary:4:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Front Porch
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Cape Cod House Plans
  • Hampton House Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • Small House Plans
